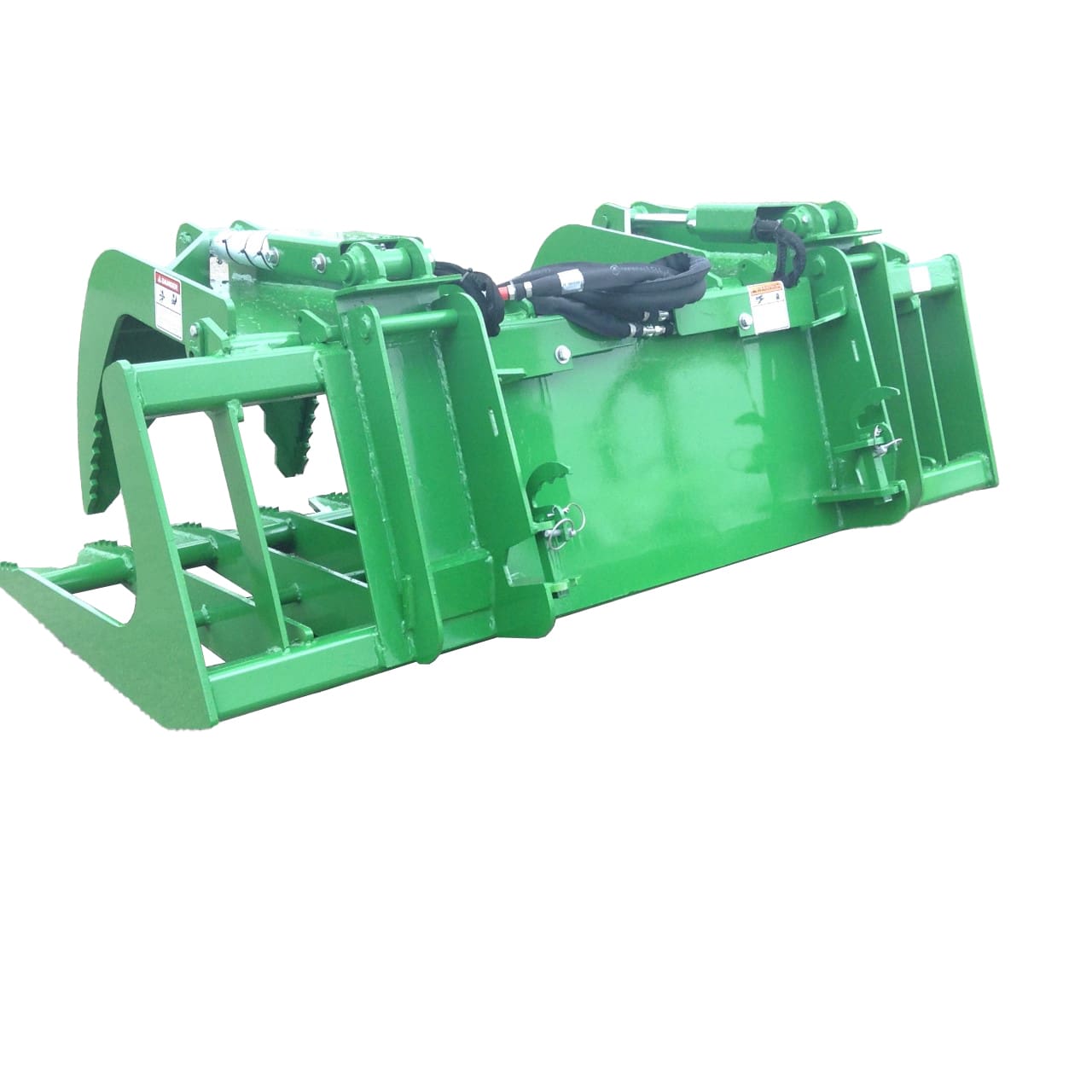

UTILITY BRUSH GRAPPLE BUCKET
Made of 3/8” T1 steel for longer durability, easily move logs, stumps, large rocks and other brush or cumbersome materials on your job site with this grapple bucket. With two independent grapples powered by 4000 PSI hydraulic cylinders with cylinder guards, 1-1/4” pins, and all grease-able pivot pins, this attachment will provide the versatility you need to clear brush and debris from existing and freshly cleared timber with skid-steers up to 70HP. Narrow tine spacing optional.
Product Specification
Model | MCO91UJD66 | MCO91UJD72 | MCO91UJD78 |
---|---|---|---|
Weight | 740 lbs | 825 lbs | 840 lbs |
Width | 66″ | 72″ | 78″ |
Height | 22.5” | 22.5″ | 22.5″ |
Depth | 37” | 37″ | 37″ |
Tine Thickness | 3/8 | 3/8 | 3/8 |
Tine Spacing | 6 ½ ” | 6 ½ ” | 6 ½ ” |
Grapple Open | 39” | 39” | 39” |
CONSTRUCTION BRUSH GRAPPLE BUCKET
Recommended for compact tractors up to 100HP and made of 1/2” T1 steel for long lasting durability, this construction grade brush grapple bucket has 2 independent 4,000 PSI grapples with cylinder guards to stabilize tough loads during transport. All pins are 1-1/4” diameter and all pivot pins are grease able. Optional narrow tine spacing available.
Product Specification
Model | MCO91HJD66 | MCO91HJD72 | MCO91HJD78 | MCO91HJD84 |
---|---|---|---|---|
Weight | 890 lbs | 935 lbs | 1020 lbs | 1090 lbs |
Width | 66″ | 72″ | 78″ | 84” |
Height | 22.5” | 22.5″ | 22.5″ | 22.5” |
Depth | 37” | 37″ | 37″ | 37” |
Tine Thickness | 1/2 | ½ | 1/2 | 1/2 |
Tine Spacing | 6 ½ ” | 6 ½ ” | 6 ½ ” | 6 ½ “ |
Grapple Open | 39” | 39” | 39” | 39 |
How Does John Deere Brush Grapple Bucket Works?
The John Deere Brush Grapple Bucket works by connecting to the hydraulic system of compatible gear. Its tough arms and powerful grapple tines securely hold and lift a variety of items, from logs to garbage. Hydraulic controls enable for precision maneuvering, while sturdy construction assures lifespan. Ideal for gardening, construction, and farm operations.
